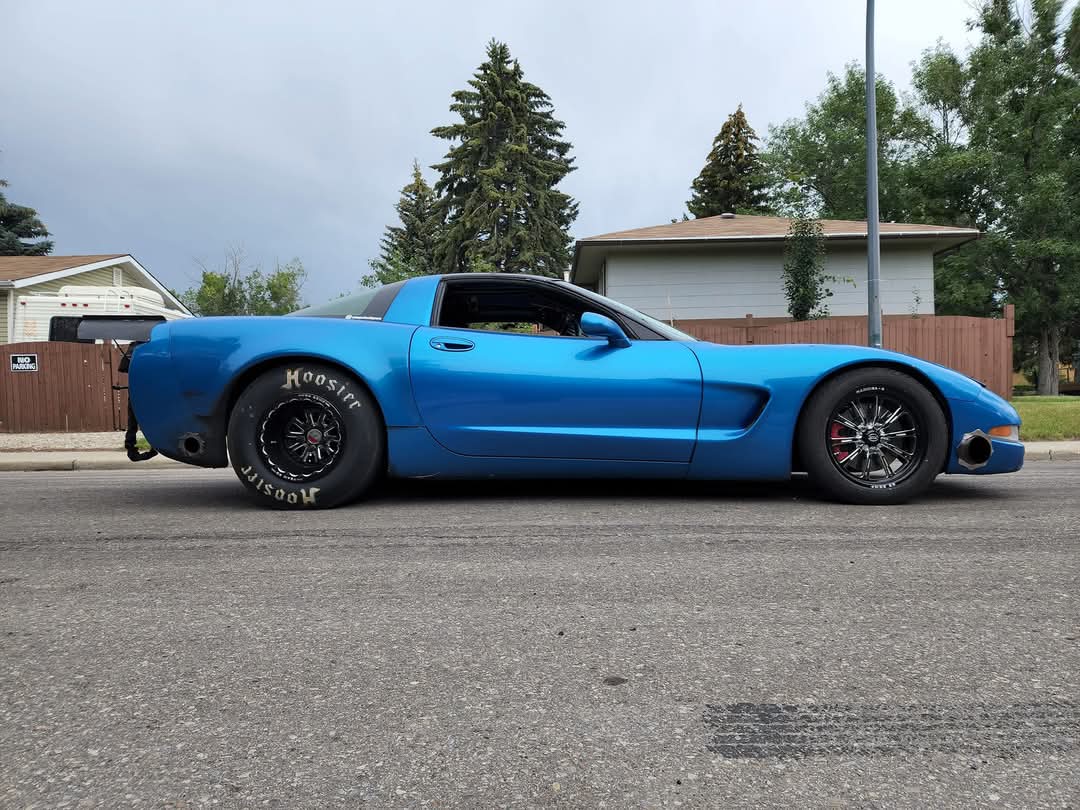

1997 Chevy Corvette C5 racecar

Phone: 587-834-1360

E-Mail - Snapshots_photography@live.ca

PLEASE INQUIRE WITH CLIENT DIRECTLY, THIS IS A PRIVATE BUILT VEHICLE.

Build sheet

1997 Chevy Corvette C5 racecar
Dart 388cu:

Dart block SHP LSNext

Dark 8 CCW billet crank High speed Balance 3.622" stroke

ARP Main studs

Manley pro I-beam rods 6.125"

Custom Ross Racing 4.135 full round skirt piston with .250" thick wrist pin

Frankenstein F710 with titanium intake valves and inconel exhaust valves.

Jesel Rockers valvetrain

Johnston 2126lsr lifter

3/8 manley Pushrod

ARP 6 bolt head stud #234-4341

Melling high volume/pressure oil pump #10296

ICT Billet valley cover

John Bewley Custom Spec Cam Shaft

Morse oil pan/pickup tub #20142

Summit SFI crank damper

PW SFI Flex plate #362348HD

BTR Trinity 16 Injector intake

PW 102mm throttle body

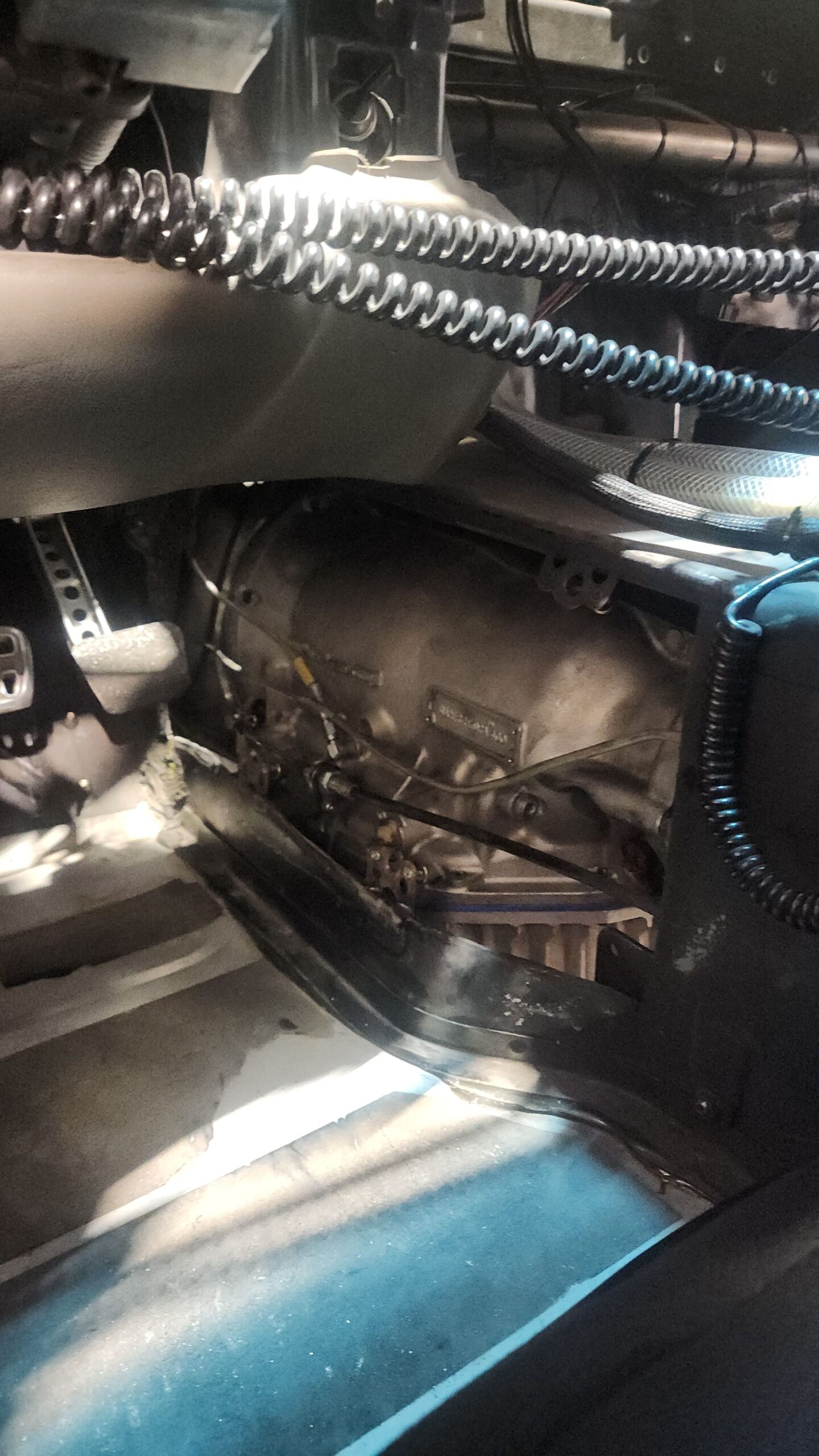

Reid Th400
-Reid SFI Drag Case
-Reid SFI Bell housing
-Graddy 1+2 reverse manual valve body
-Pro mod 36 elements Super Drum intermediate Sprag
-300m input shaft
-300m intermediate shaft

PTC Bolt Together 16-0 9.5" Billet converter

Moser Ford 9" Solid axle conversion kit
-40spline gun drill axle
-35 spline Aluminum 3rd member bolt through
-3.40 Pro gear
-Pro flange
-5/8 long stud
-HD Backbracing

MOSER Dual Rear Drag Brake

TBM Drag Front Brake

Driveline Specializes Drive shaft with 1350 yoke

TRZ Outlaw Front Kmember with Billet spindle

M&M 3 speed air shifter

2x Aluminum Kirk racing seats #55185 with cover #5518511

2x SFI PW 5 point belt #270500

Quick releases steering wheel with hub

Motion Racework C02 bottle kit

Mid West Chassie parachute Mount

Stroud 430 Parachute

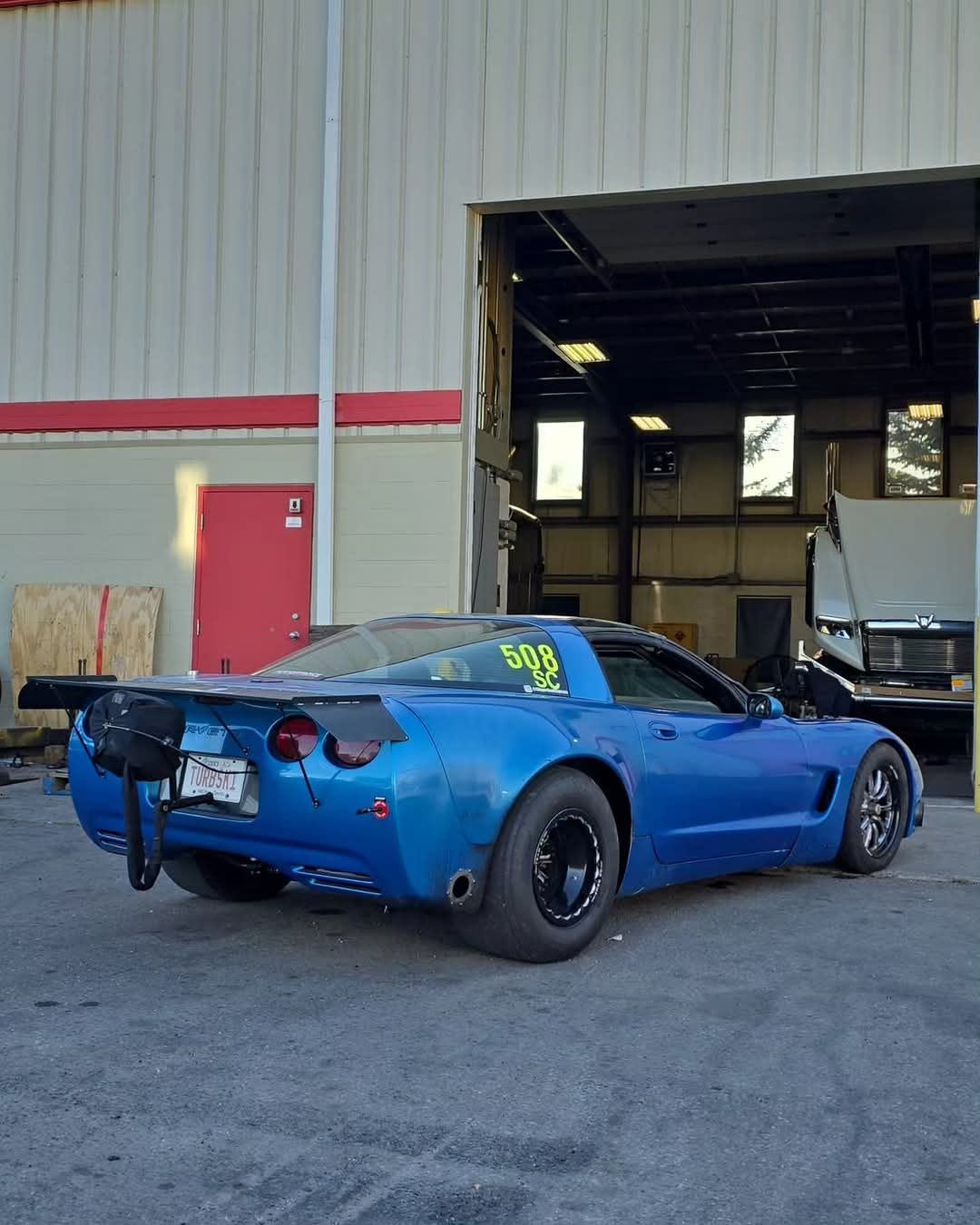

Ed Quay Componet Drag Wing

Vi king double adjustable Coilover shocks 5" stroke front and 7" rear stroke

B&M Hi-tek superpower with fan trans cooler

Fuel system:

Aeromotive 10.0GPM Brusless gear pump #11198

Aeromotive Regulator #13132
Aeromotive 100m pre filter #12362
Aeromotive 10m post filter #12364

Bosch 210lbs injector

Fuel lines / AN FITTINGS
-16an/12an feed and -10an return

PW 15 gallon fuel tank #649460

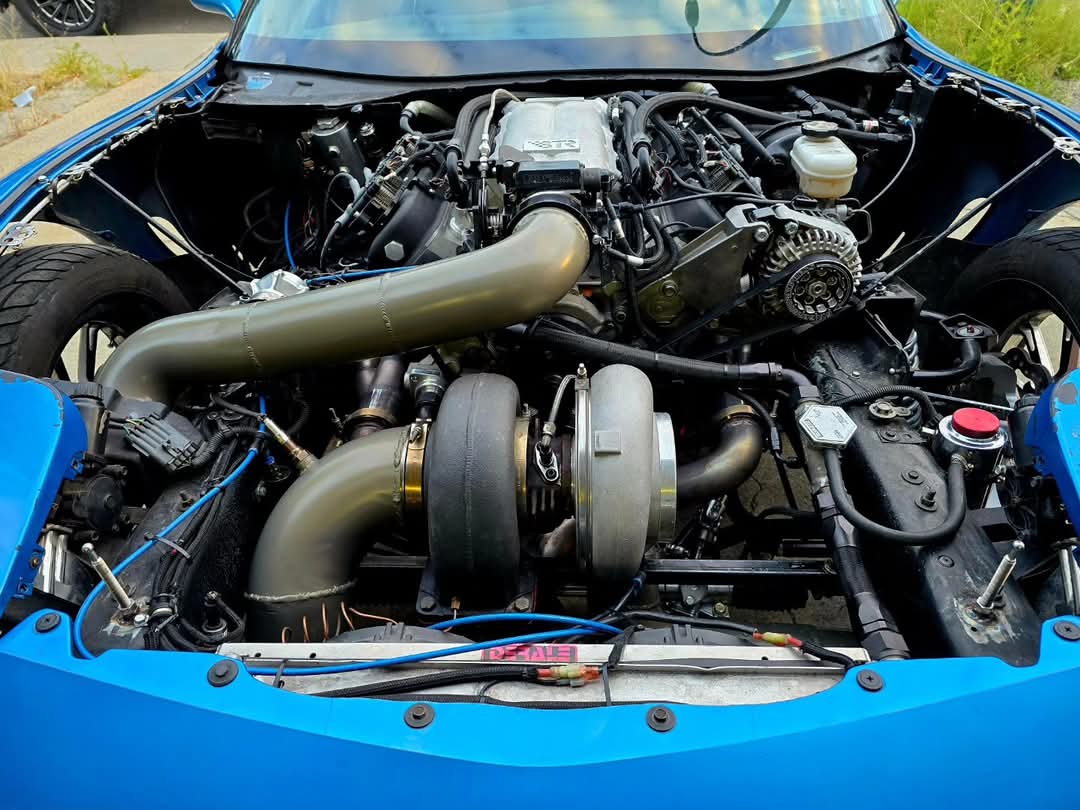

Force induction GTR 98mm Gen3 T6 1.24 102/112 turbine

Chiseled Custom intercooler 6" bell core

4" Aluminum cold side pipes, 2.50" hotside stainless steel

2x PW 45mm wastegate #88145

TiAL sport Q 50mm Blow-off VALVE

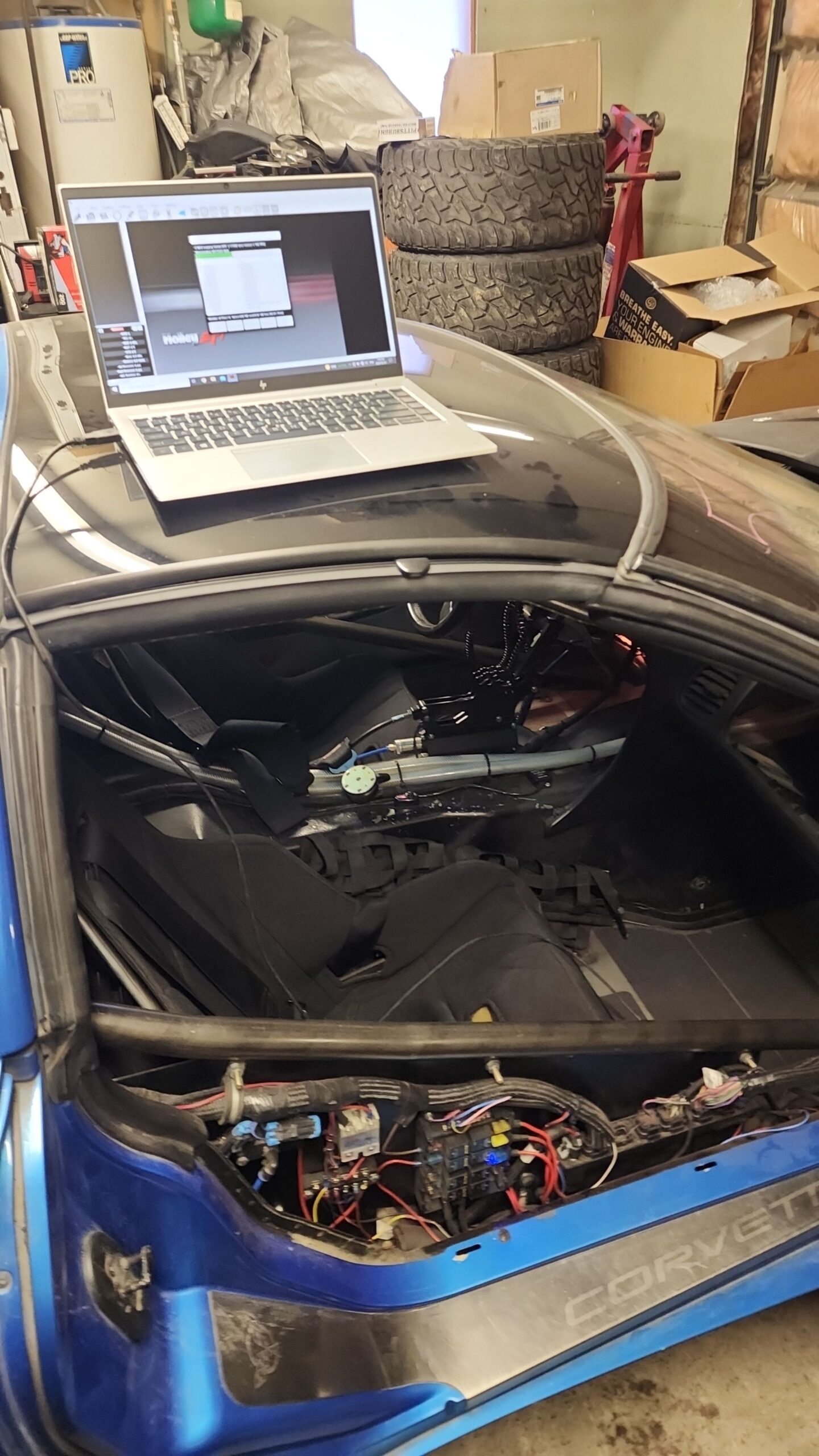

Electronic System:

Holley Dominator ECU kit w/ main harness, injector harness
#550-651

Holley Smart Coil Kit #556-128

NTK wideband #554-100

Pressure sensor:
Transmission line pressure
Converter pressure
Backpressure
Dome pressure
Fuel pressure
Coolant pressure

Holley 5 Bar MAP
#554-108

Holley Pro Dash 6.86" #553-117

Shock 6" front travel sensor/ rear 8" sensor #sts23800

Holley EFI Flow Dual Solenoid #557-201

Lease Electronic 8 Relay Panel

Holley 3 port solenoid for Air Shifter

RC Compontents Front Hammer 17x4.5"

RC Hammer Rear double beadlock 15x12" 4.5bs

2x Micky Thompson S/R 26x6r17lt #255649

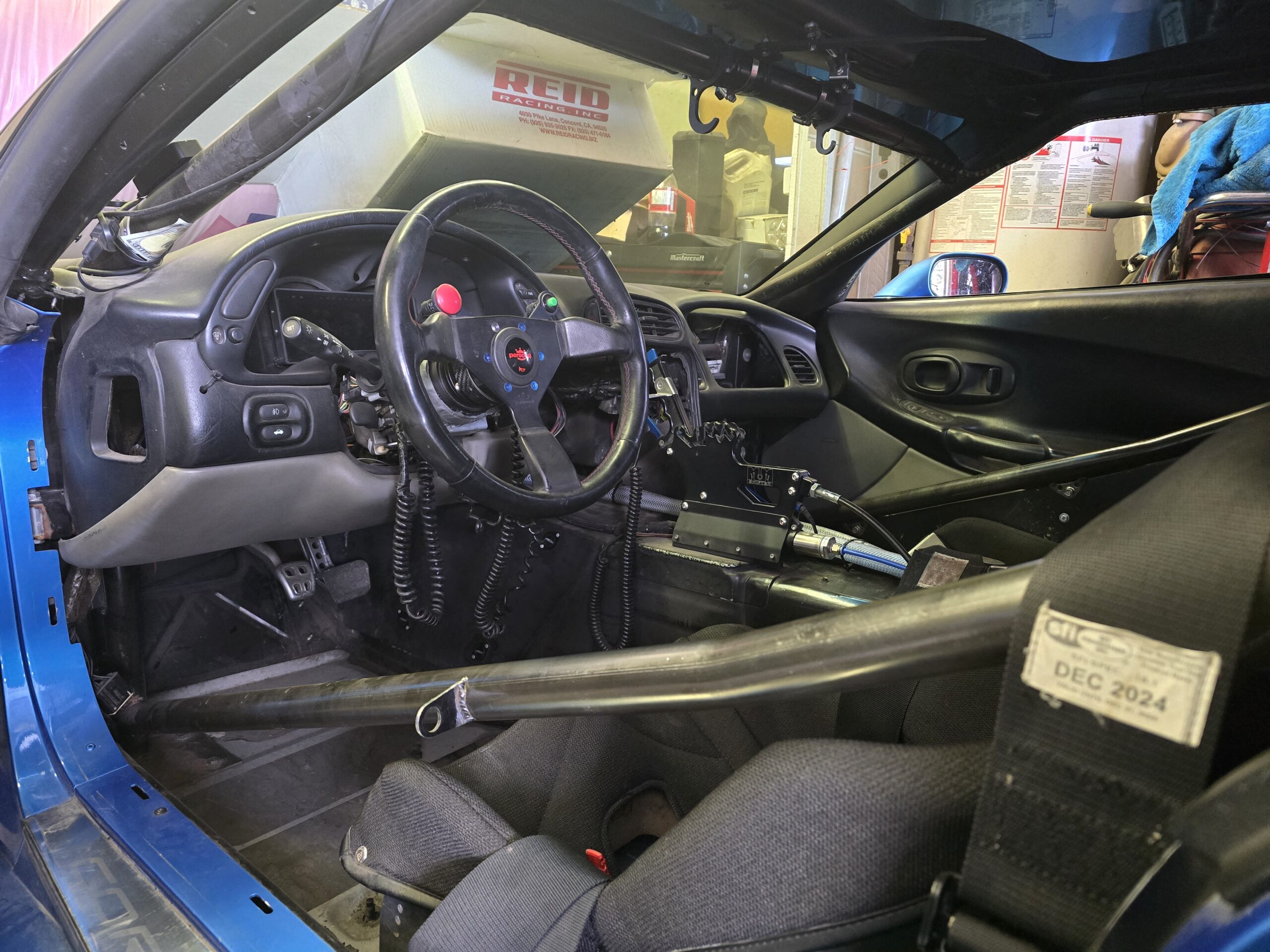

Wolfcraft 10pt Roll Cage

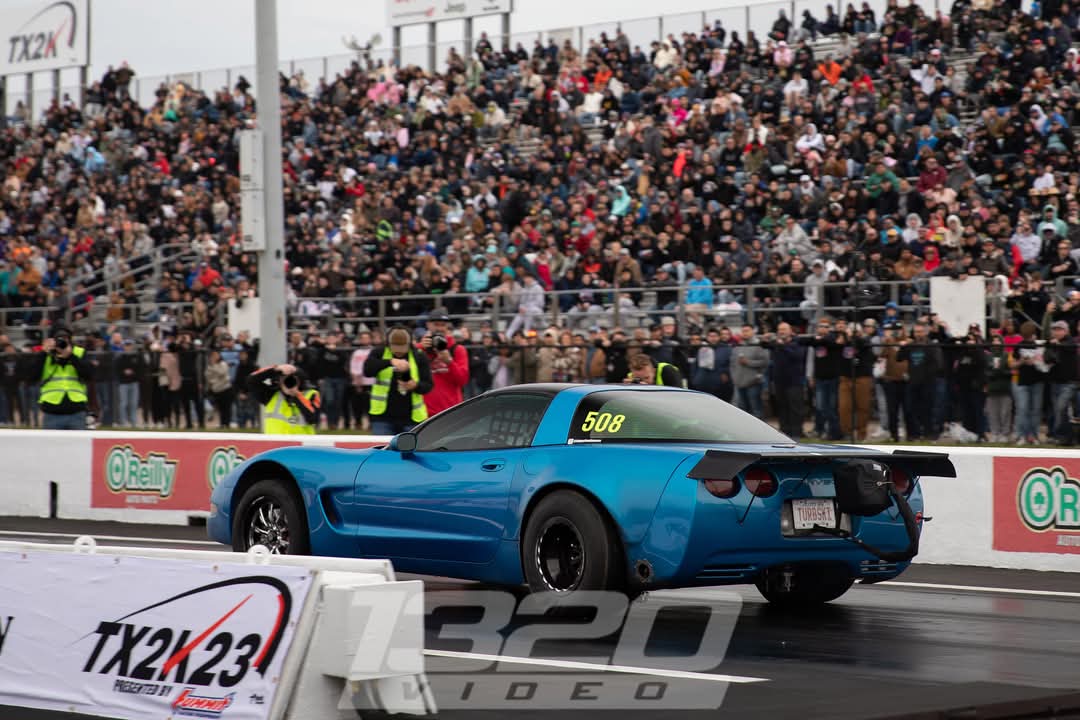

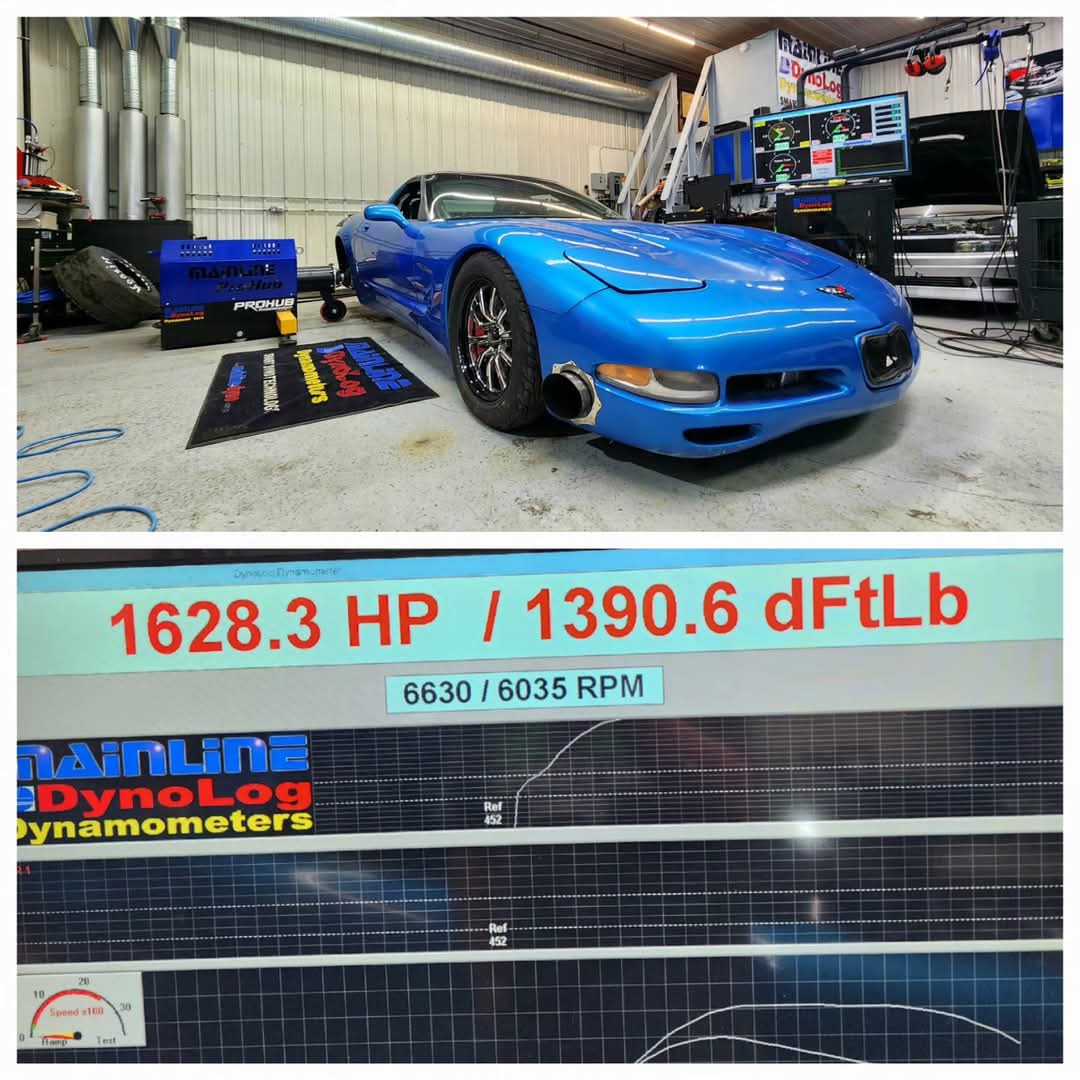

Last time on the dyno, 2 years ago. The car made 1630whp/1390ftlbs on pump E85 with old FED m311 heads. The car has gone 4s in the 1/8 and 7s in the 1/4 miles on a small tire 275/60r15.

$90k Canadian
$67k USD
